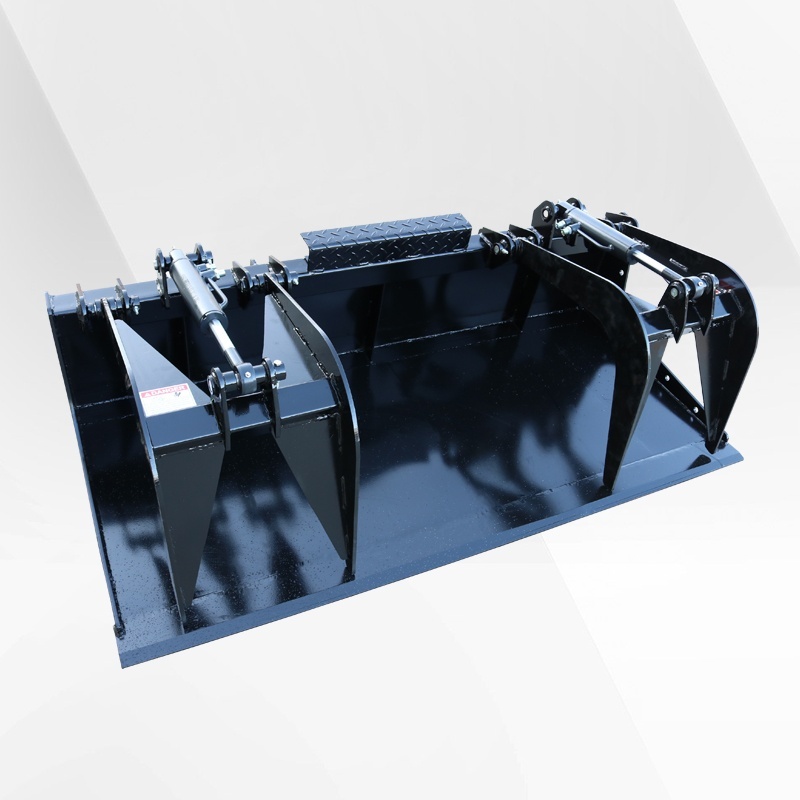

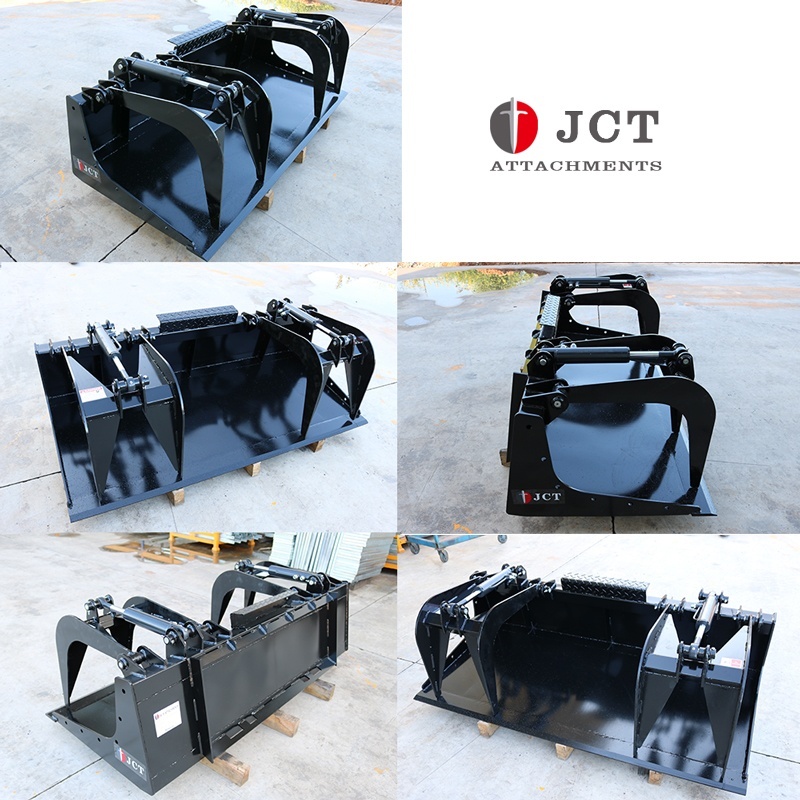

Skid Steer Grapple Bucket

The grapple bucket attachment's basic design allows it to load and grapple large and/or uneven objects as well as clean up the smallest debris. Our grapple buckets feature enclosed cylinders and hoses to protect against debris and stray limbs.
We have also increased the depth of the bucket - giving it a larger loading capacity than ever before. Reinforced 1/2" ribbed bottom reduces bowing and wear of the grapple bucket. We use 1/4" reinforced body and 1/2" tines, with the unique feature of having cylinder barrel covered with optional rod covers available (specail order)
The cylinders have a 2" bore and 10" stroke. We also protected the hydraulic lines by routing them inside of tubing to protect from falling debris and other wear and tear. Every pivot point has a grease fitting, and it comes standard with a 3/4" X 6" welded on cutting edge (may also add a reversable Bolt On Edge).
Available in six sizes: 60", 66", 72", 78", 81", 84".

Size (width)
66"
72"
78"
81"
84"
Depth
33.5"
33.5"
33.5"
33.5"
33.5"
Height
34"
34"
34"
34"
34"
Weight (lbs.)
750
800
850
875
900
Grapple opening
38.6"
38.6"
38.6"
38.6"
38.6"
Cutting edge
3/4" x 6"
3/4" x 6"
3/4" x 6"
3/4" x 6"
3/4" x 6"
